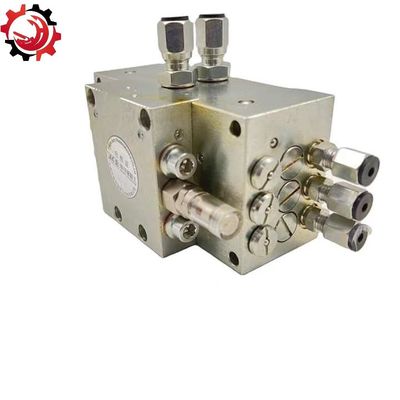

Plugin Sany Concrete Pump Spare Parts Progressive Lubrication System Distributor

Products

Putzmeister Concrete Pump Spare Parts

CIFA Concrete Pump Spare Parts

Plugin Sany Concrete Pump Spare Parts Progressive Lubrication System Distributor

MOQ:	5
Price:	10-50USD Price is negotiable
Standard Packaging:	Individual carton packing
Delivery Period:	5-8week day
Payment Method:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity:	100pcsday

Detail Information

Product Description

Detail Information

Place of Origin

china

Brand Name

Support customization

Model Number

6JPQC-1/86D

Capacity Per Well (ml/cy):

Nominal Pressure (Mpa):

Starting Pressure (Mpa):

Number Of Feed Ports (PCS):

Inlet And Outlet Oil Hole Diameter (mm):

6 Or 8

Warranty:

1 Year

6JPQC-1/86D:

Black, Yellow

Support OEM ODM:

High Efficiency And Environmental Protection

Minimum Order Quantity:

Price:

10-50USD Price is negotiable

Packaging Details:

Individual carton packing

Delivery Time:

5-8week day

Payment Terms:

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability:

100pcsday

Highlight:

sany concrete pump spare parts Progressive Distributor

sany concrete pump spare parts Distributor

Plugin Progressive Lubrication system

Product Description

The company specializes in the production of all kinds of high, medium, low pressure dry, thin oil lubrication equipment, hydraulic components, fluid connectors, support to map customization, large volume support logo customization, welcome overseas customers to come to buy, excellent price, good quality.

Product description

JPQ-M progressive distributor

Whole sheet structure, good sealing, high pressure, suitable for heavy load grease lubrication system.
It can be connected in series by the child and the mother, and it can be divided into two and three levels of oil.
Optional cycle indicator for remote control or control of lubrication system.

Model example

6 JPQ - M1/0.2/66 D:

The first series of JPQ-M series progressive distributor; 6 standard export oil; 0.2ml/ cycle per mouth;

The oil inlet is connected with a 6mm outer diameter pipe joint; The oil outlet is connected to the check valve connector of the 6mm outer diameter pipe D

Technical parameter

Model: JPQ-M1

Plugin Sany Concrete Pump Spare Parts Progressive Lubrication System Distributor 1

Capacity per well (ml/cy) : 0.2

Nominal pressure (Mpa) : 31.5

Starting pressure (Mpa) : ≤1.5

Number of feed ports (PCS) : 6~20

Inlet and outlet oil hole diameter (mm) : ¢6 ¢8

Model: JPQ-M2

Plugin Sany Concrete Pump Spare Parts Progressive Lubrication System Distributor 2

Displacement per hole (m/g) : 0.15; 0.20; 0.30; 0.38; 0.48; 0.60; 0.72; 0.86

Nominal pressure (Mpa) : 31.5

Starting pressure (Mpa) : ≤1.5

Number of feed ports (PCS) : 6~20

Inlet and outlet oil hole diameter (mm) : ¢6 ¢8

JPQ-M optional accessories

Proximity switch type cycle indicator

Proximity switch structure

The distributor works in one cycle, and the cycle indicator operates once, which can be used to monitor the working state of the lubrication system (fault alarm or control the lubrication system to work and stop).

Signals can be provided to PLC

Our company is committed to one-stop parts service to ensure perfect fit and excellent performance. This makes it easier for you to find the right part for your pump truck, saving you time and effort.

Наша компания работает над одноэтажным сервисом аксессуаров, обеспечивающим идеальное сотрудничество и превосходную производительность. Это облегчает поиск деталей, подходящих для вашего насоса, экономит ваше время и энергию.

Product description
JPQC plug-in progressive distributor.
High pressure of working valve block; Easy to replace
Each feed port of JPQC-1 series is equipped with safety adjustment and overpressure overflow indication, which can ensure the normal operation of the distributor when the lubrication point is blocked, and show the blockage point
After the overflow grease of all safety valves is concentrated, the pump oil drum can be connected to the T port
The principle and explanation of safety valve and overpressure overflow indication are the same as AGF .

Model example

6JPQC-1/86D6 :

The first series JPQC series plug-in progressive distributor; 6 oil outlets; The oil inlet is connected with an 8mm outer diameter pipe joint;

The oil outlet is connected to the check valve connector of the 6mm outer diameter pipe, and the oil return port is connected to the 6mm outer diameter pipe connector

Technical parameter

Model: JPQC-1 JPQC-2

Capacity per well (ml/cy):0.2

Nominal pressure (MPa) : 31.5

Starting pressure (MPa) : ≤1.5

Relief valve overflow pressure (MPa) : 10

Oil inlet nozzle (mm) : ¢6¢8

Oil return port nozzle (mm) : ¢6¢8

Oil outlet nozzle (mm) : ¢6¢8

Plugin Sany Concrete Pump Spare Parts Progressive Lubrication System Distributor 3

Эта компания специализируется на производстве высококачественных, средне-средных, разбавленных масличных приборов, гидравлических компонентов, жидких соединений, поддерживаемых для того, чтобы быть на графике, в больших объектах поддерживаемых логотипом, и приветствует большое количество зарубежных клиентов, которые пришли на отбор, повышение цен и качественное качество.
