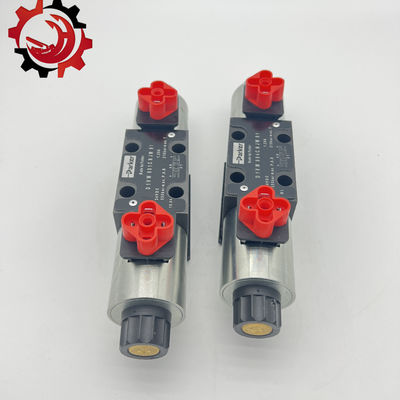

Cast Iron Parker Directional Control Valve D1VW001 CNJW91

MOQ: 5pcs
Price: $50-$60/pc
Standard Packaging: Carton packing
Supply Capacity: 500pcs/per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
PARKER
Certification
CE certificate
Model Number
D1VW 004/001 CNJW91
Application:
Construction Machinery
Color:
Black
Function:
Pump Concrete
Material:
Iron
Product Type:
Pump Truck Parts
Size:
Standard
Usage:
Pump Truck
Weight:
3.5kg
Maximum Working Pressure:
350bar
Applicable Temperature:
-20~70（℃）
Nominal Diameter:
6mm
Minimum Order Quantity:
5pcs
Price:
$50-$60/pc
Packaging Details:
Carton packing
Supply Ability:
500pcs/per month
Highlight:

Cast Iron parker directional control valve

,

parker directional control valve CNJW91

,

D1VW001

Product Description

Parker D1VW 004/001 CNJW91 Directional Valve with Soft Switching and Certifications



Product Description:



1. The D1VW 004/001 CNJW91 is an fitted directional valve with a flow capacity of up to 80 l/min at a small pressure drop due to an optimized flow path design. Maximum working pressure 350 bar.



2. A variety of spool options are available and a variety of hydraulic circuits can be configured. The D1VW valve has an optional soft switching valve for smooth switching. An additional damping hole in the reversing channel of the solenoid valve can extend the reversing time.



3. D1VW 004/001 CNJW91 series valve with ATEX certification. The valve is not only ATEX certified (explosion-proof class Ex e mb II T4 Gb for Zones 1 and 2) but also IECEx compliant (equipment class 2 G).



Market and application
• Suitable for almost all industrial applications

Peculiarity
• Compact design
• Soft switching function is optional
• The player may exceed his authority
• Optional explosion-proof certification

Advantage
• Reliable design, representing Parker's long experience in the hydraulic industry
• Multiple spool options for most systems



Technical Specification



Name

Directional valve
Model

D1VW 004/001 CNJW91
Voltage

24VDC
Electric current

1.29A
Maximum working pressure

350bar
Scope of application

Hydraulic system
Installation form

Plate mounting
Connection form

Screw thread
Bulk material

Cast iron
Operating temperature

hyperthermia



Cast Iron Parker Directional Control Valve D1VW001 CNJW91 0Cast Iron Parker Directional Control Valve D1VW001 CNJW91 1Cast Iron Parker Directional Control Valve D1VW001 CNJW91 2



ABOUT COMPANY

Changsha HuaYi Technology Co., LTD., specialized in the sale of construction machinery parts.

Our company mainly business in various brands of pump trucks, excavators, cranes, wet spray machines and other accessories, as remote controls, Rexroth oil pump, transfer boxes, double pump pipes, lubrication pump, Harvey/Eaton/Parker/Kawasaki valves.

our company specializes in the offline and online trading of used construction vehicles in China, so the concrete pump trucks displayed on the website may have been sold offline.Our database provides a large number of fresh used concrete pump trucks, used excavator used mixer trucks and other construction vehicles, please contact our sales directly to provide you with more accurate services.Thank you for your patience to browse!​​

Cast Iron Parker Directional Control Valve D1VW001 CNJW91 3Cast Iron Parker Directional Control Valve D1VW001 CNJW91 4Cast Iron Parker Directional Control Valve D1VW001 CNJW91 5Cast Iron Parker Directional Control Valve D1VW001 CNJW91 6Cast Iron Parker Directional Control Valve D1VW001 CNJW91 7
