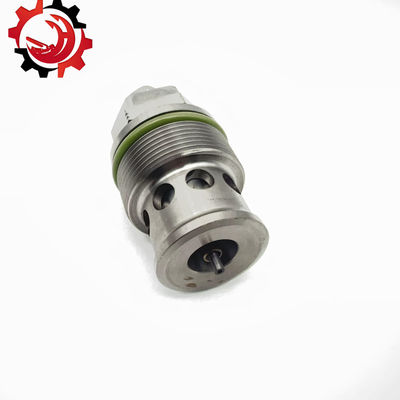

Cast Steel Zoomlion Concrete Pump Parts C10 Overflow Relief Valve

C10 relief valve material cast steel overflow valves for concrete pumps accessories

Product Description:

1. 1. Types of Overflow Valves:

   • Spring-Loaded Relief Valves: These valves use a spring mechanism to control the pressure at which they open and relieve excess pressure. The spring force is set to a specific pressure range, and when the system pressure exceeds this range, the valve opens to release the excess fluid or gas.

   • Pilot-Operated Relief Valves: Pilot-operated relief valves use a pilot valve to control the opening and closing of the main relief valve. The pilot valve senses the pressure in the system and, when it reaches the set point, it signals the main valve to open and relieve the pressure.

   • Pressure Relief Valves with Adjustable Settings: Some overflow valves allow for the adjustment of the pressure set point. This provides flexibility in controlling the pressure at which the valve opens and relieves the excess pressure.

   •

2. 2. Applications of Overflow Valves:

   • Hydraulic Systems: Overflow valves are commonly used in hydraulic systems to protect components such as pumps, cylinders, and motors from excessive pressure. They ensure the system operates within a safe pressure range and prevent damage or failure.

   • Pneumatic Systems: Similar to hydraulic systems, pneumatic systems also utilize overflow valves to safeguard components and maintain safe operating pressures.

   • Pressure Vessels and Tanks: Overflow valves are installed on pressure vessels and tanks to prevent overpressure situations that could lead to catastrophic failures.

   • Plumbing and Water Systems: Overflow valves are utilized in plumbing systems, water heaters, and boilers to prevent excessive pressure buildup and protect against potential burst pipes or equipment damage.

   • Process Industries: Overflow valves find application in various process industries, such as oil refineries, chemical plants, and power plants, to protect equipment and maintain safe pressure levels during operations.

   •

3. 3. Design Considerations:

   • Capacity: Overflow valves are selected based on their capacity to handle the maximum flow rate required for pressure relief. This capacity is typically specified by the manufacturer and should be matched with the system's needs.

   • Set Pressure Range: The set pressure range should be carefully determined to ensure that the overflow valve opens at the desired pressure level while also avoiding false triggering due to minor pressure fluctuations.

   • Materials and Compatibility: Overflow valves are available in various materials to suit different applications and fluid types. It's essential to select a valve that is compatible with the fluid or gas in the system to ensure proper functionality and longevity.

   • Standards and Certifications: Overflow valves may need to comply with specific industry standards and certifications, such as ASME (American Society of Mechanical Engineers) or API (American Petroleum Institute), to ensure their reliability and safety.

Technical Specification

ABOUT COMPANY

Our company is committed to one-stop parts service to ensure perfect fit and excellent performance. This makes it easier for you to find the right part for your pump truck, saving you time and effort.
