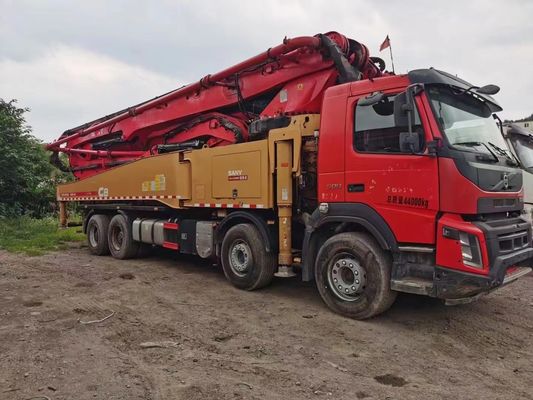

2018 Sany Used Concrete Pump Truck 56m SYM5446THB 560C-8A 41460kg

Products

Putzmeister Concrete Pump Spare Parts

CIFA Concrete Pump Spare Parts

2018 Sany Used Concrete Pump Truck 56m SYM5446THB 560C-8A 41460kg

MOQ:	1 PCS
Price:	37000-86000/unit
Standard Packaging:	Contact Now Chat Now
Delivery Period:	3-15work days
Payment Method:	L/C, D/A
Supply Capacity:	100 units per month

Detail Information

Product Description

Detail Information

Place of Origin

china

Brand Name

Sany zoomlion

Certification

other

Model Number

SYM5446THB 560C-8A

Total Length:

13760mm

Vertical Depth Of Boom:

36.6m

Vertical Height Of Boom:

56.0m

Total Width:

2500mm

Minimum Development Height:

15.2m

Horizontal Length Of Boom:

51.0m

High Pressure:

120 M3/h

Concrete Theoretical Discharge Pressure::

170 M3/h

Weight:

41460kg

Type:

Hydraulic

Minimum Order Quantity:

1 PCS

Price:

37000-86000/unit

Packaging Details:

Contact Now Chat Now

Delivery Time:

3-15work days

Payment Terms:

L/C, D/A

Supply Ability:

100 units per month

Highlight:

2018 Sany Used Concrete Pump Truck

41460kg Used Concrete Pump Truck

SYM5446THB

Product Description

2018 Sany Used Concrete Pump Truck 56m SYM5446THB 560C-8A 41460kg 0

Product description

_{^{2018-year Sany Volvo 56 meters Used concrete pump truck SYM5446THB 560C-8A}}

1. Six-section RZ boom, the end arm has a large expansion Angle, and the fabric is flexible and convenient

2. "X" type leg, unilateral support, suitable for narrow site construction

3. The four-bridge chassis fabric height reaches 56 meters, and the chassis boom of the same specification is the longest in the world

4. Pump displacement up to 170 m3/h, stepless adjustment, to meet the needs of various working conditions

5. Computer energy saving control, automatic power matching, average energy saving 20%

6. The pumping system is flexibly installed to reduce the impact on the bottom frame and the wear of the concrete piston

Technical parameter

The first section arm length: 11400mm

Angle: 90°

Second section arm length: 9230mm

Angle: 180°

Third section arm length: 8750mm

Angle: 180°

Fourth section arm length: 11060mm

Angle: 240°

The fifth arm length: 11560mm

Angle: 220°

Rotary table rotation Angle: ±360°

Front leg spread width: 9300mm

Rear leg spread width: 11670mm

_{The truck-mounted concrete arm pump is a convenient and efficient special construction machine for concrete conveying and pouring, which has the characteristics of short construction period, large spreading range, low labor intensity and narrow space. The company has focused on second-hand equipment and concrete sales for many years, and has a large number of brands of second-hand concrete pump machinery sales

56m concrete pump Advantages and highlights:}

Engine type: 6WF1D

Engine power: 287kW/1800rpm

Emission standard: Euro III

Fuel tank capacity: 400 L

Displacement: 14.256L

^{Maximum speed: 80km/h}

^{Braking distance: ≤10m/30km/h}

Tags:

telescopic concrete pump,

sany boom pump,

Video
