Multiway Hydraulic Valve Vacuum Solenoid Valve Concrete Pump Truck Parts

Can Sensitive Proportional Multiway Valve Hydraulic Valve Vacuum Solenoid Valve Concrete Pump Truck Parts

PEODUCT DESCRIPTION

Pump truck multitandem valve is an important part of pump truck construction machinery, which is mainly used to control the work of multiple actuators in the hydraulic system

Hydraulic directional valve: used to control the conversion of fluid flow direction, so that the hydraulic system can achieve positive and negative rotation or stop.

The main function of the multiway valve of the pump car is to guide the pressure oil flow in the hydraulic system from one outlet to multiple entrances or from multiple entrances to one outlet to meet the working needs of the hydraulic actuator in different parts.

description

summarize

The power amplifier, displacement sensor and CAN bus communication module are integrated in the CAN load sensing proportional multiway valve to realize the closed-loop control of the spool position and improve the operation accuracy of the multiway valve.

CAN bus is a broadcast-based multi-master serial data communication protocol, which has the advantages of high communication rate, high reliability and good real-time, and the bus control has the advantages of simple installation and wiring, and four cables can realize the control of multi-disc valves.

advantage

Less harness, simple wiring

Integrated LVDT displacement sensor

Factory commissioning and calibration

High operating precision

The maximum flow rate can be limited

Diagnostic capability (fault detection, valve position)

Scope of application

Lifting machinery

Hydraulic system

Construction machinery

Lifting equipment

Forestry machinery

Municipal engineering vehicle

Electrical parameter

Operating voltage :12/24V DC

Maximum working current :10A

Single chip maximum current consumption :700mA(DC24V)  1.3 A (DC12V)

communication

Bit rate :100K/125K/250K/500K

Mailing address :0x600+ID

ID range :1... 127

Communication protocol: Refer to the CAN Communication Protocol manual

Product Parameter

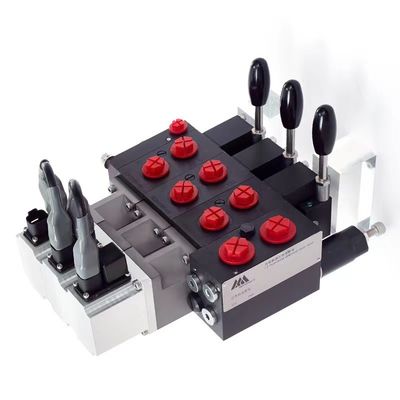

Product Picture

The company specializes in the production of all kinds of high, medium, low pressure dry, thin oil lubrication equipment, hydraulic components, fluid connectors, support to map customization, large volume support logo customization, welcome overseas customers to come to buy, excellent price, good quality.
