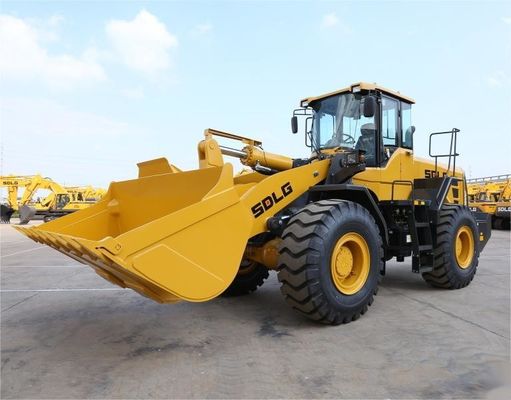

Used Wheel Loaders New Arrival SDLG 956L Earthwork for Construction Machinery

Product Description:

Loader is a kind of earthwork construction machinery widely used in highway, railway, construction, hydropower, port, mine and other construction projects, it is mainly used for shoveling soil, sand, lime, coal and other loose materials, but also for ore, hard soil and other light shoveling and digging operations. The replacement of different auxiliary working devices can also be used to move earth, lift and load and unload other materials such as wood.

Commonly used single-bucket loaders are classified according to engine power, transmission form, walking system structure and loading mode.

1, engine power: ① power less than 74kw for small loaders. ② Power in 74 ~ 147kw for medium loaders ③ power in 147 ~ 515kw for large loaders ④ power greater than 515kw for extra large loaders

2, transmission form: ① hydraulic - mechanical transmission, small impact vibration, long life of transmission parts, easy to operate, speed and external load can be automatically adjusted, generally used in large and medium loaders; ② Hydraulic transmission: stepless speed regulation, easy to operate, but poor start-up, generally only used in small loaders; ③ Electric drive: stepless speed regulation, reliable work, simple maintenance, high cost, generally used in large loaders.

3, walking structure: ① tire type: light weight, fast speed, flexible mobility, high efficiency, not easy to damage the road surface, ground specific pressure, poor passability, but widely used; 2 Crawler type: small ground pressure, good passability, low center of gravity, good stability, strong adhesion, large traction, large specific cutting force, low speed, relatively poor flexibility, high cost, easy to damage the road surface when walking.

4, loading and unloading mode: ① front unloading type: simple structure, reliable work, good vision, suitable for a variety of work sites, widely used; ② Rotary: the working device is installed on the rotary table that can be rotated 360°, the side unloading does not need to turn, the operation efficiency is high, but the structure is complex, the quality is large, the cost is high, the side stability is poor, and it is suitable for the narrow site. ③ Post-unloading type: front-end installation, back-end unloading, high working efficiency, poor safety of the operation

Product Parameters:
 ​​​

NO	Name	Parameter
Vehicle parameters
1	Brand Name	other
2	Power	162W
3	Bucket Capacity	2.5-4.5m³
4	Ground clearance	496mm
5	Operating weight	17000-17200kg
6	Length*Width*Height	8430*3024*3382mm
7	Machine operating weight (kg)	17000~17250 Kg
8	Rated load (kg)	5000 Kg
9	Bucket capacity	2. 5~4. 5m3
10	Max - Unloading height (mm)	3180~3700mm
11	Unloading distance (mm)	1090~1160mm
12	Digging force (lifting force) (kN)	180 KN
13	Rated load (tons)	More than 6 tons
14	Rated power (kw/rpm)	162 kW
15	Steering Angle	38 °
16	Ternary sum (s)	≤11 s
17	Maximum tractive force (kN)	≥167 KN
18	Maximum climbing ability (°)	30 °
19	Machine length (mm)	8430
20	Machine width (mm)	3024
21	Machine height (mm)	3024



​
