AH-B6/0.3/0.2 Hydraulic Lubrication Pump 16MPa~25MPa OEM

Products

Putzmeister Concrete Pump Spare Parts

CIFA Concrete Pump Spare Parts

AH-B6/0.3/0.2 Hydraulic Lubrication Pump 16MPa~25MPa OEM

MOQ:	5
Price:	100-168USD Price is negotiable
Standard Packaging:	Individual carton packing
Delivery Period:	In stock
Payment Method:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity:	50pcsday

Detail Information

Product Description

Detail Information

Place of Origin

china

Brand Name

Support customization

Model Number

AH-XD6/0.3/0.20S

Nominal Pressure (MPa):

16-19

The Best Driving Oil Pressure (MPa):

16-19

Maximum Driving Oil Pressure (MPa):

Circulation Port Volume (ml/cy):

0.2/0.3/0.4

Synchronous Port Displacement (ml/cy):

0.15/0.2/0.3

Warranty:

1 Year

AH-XD6/0.3/0.20S:

Yellow

Hose Material:

Steel

Inlet Pressure:

20-220Bar

Power:

Hydraulic

Power Source:

Hydraulic

Pressure:

High Lubricstion Pressure

Pump Material:

Aluminum

Pump Type:

Hydraulic Grease Pump

Minimum Order Quantity:

Price:

100-168USD Price is negotiable

Packaging Details:

Individual carton packing

Delivery Time:

In stock

Payment Terms:

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability:

50pcsday

Highlight:

OEM hydraulic lubrication pump

16MPa hydraulic lubrication pump

16MPa lubrication hydraulic pump

Product Description

Pump lubrication pump is one of the key components used in pump lubrication system. Its main role is to provide lubricating oil or grease for various lubrication points of the pump truck to ensure the normal operation and long-term reliability of the components of the pump truck.

Product description

AH - 0.3/0.2 B6 / F:

Hydraulic synchronous lubrication pump - fat outlet nozzle diameter 6mm; Circulation port capacity 0.3ml/ cycle; Two simultaneous displacement 0.2ml/ cycle; The special grease port on the right side is quick-insert interface type; Drive connector port down

Judge the length of the oil barrel, allowing you to judge the oil storage

Hydraulic power drive, reliable performance, suitable for continuous lubrication

Three grease outlets are configured, two of which are synchronized with the drive hydraulic oil reversing synchronously and alternately

Either group of synchronous ports and circulating ports can be blocked (two ports must be blocked simultaneously when synchronous ports are blocked)

The circulation port is equipped with pressure gauge and safety relief valve

Oil suction filter is standard

Suitable for hydraulic source pressure in 16MPa~25MPa equipment lubrication

It is suitable for concrete conveying pump, open-pit mining machine, port equipment, rubber and plastic machinery of construction machinery

A progressive distributor can be configured for each outlet

Technical parameter

Model: AH-B

Nominal pressure (MPa) : 16~19

The best driving oil pressure (MPa) : 16~19

Maximum driving oil pressure (MPa) : 25

Circulation port displacement (ml/cy) : 0.20/0.30/0.40

Synchronous port displacement (ml/cy) : 0.15/0.20/0.25

Number of circulation (PCS) : 1

Number of synchronous ports (PCS) : 2

Relief valve overflow pressure (Map) :20

Barrel volume (L) : 4

Standard drive port (mm) : M16×1.5 (inner cone 24°)

Applicable medium (lithium grease) : O#~000#

Note: When customizing the driver port, add the model to the driver port

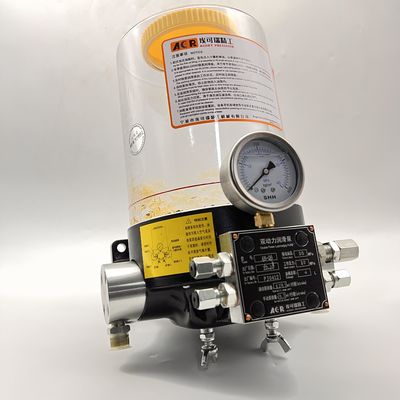

AH-B6/0.3/0.2 Hydraulic Lubrication Pump 16MPa~25MPa OEM 1
