Automatic Synchronous Hydraulic Grease Pump Lubrication System OEM

Products

Putzmeister Concrete Pump Spare Parts

CIFA Concrete Pump Spare Parts

Automatic Synchronous Hydraulic Grease Pump Lubrication System OEM

MOQ:	5
Price:	100-168USD Price is negotiable
Standard Packaging:	Individual carton packing
Delivery Period:	5-8week day
Payment Method:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity:	50pcsday

Detail Information

Product Description

Detail Information

Place of Origin

china

Brand Name

На заказ.

Model Number

AH-XD6/0.3/0.20S

Nominal Pressure (MPa):

16-19

The Best Driving Oil Pressure (MPa):

16-19

Maximum Driving Oil Pressure (MPa):

Circulation Port Volume (ml/cy):

0.2/0.3/0.4

Synchronous Port Displacement (ml/cy):

0.15/0.2/0.3

Warranty:

1 Year

AH-XD6/0.3/0.20S:

Yellow

Support OEM ODM:

High Efficiency And Environmental Protection

Number Of Circulation (PCS):

Number Of Synchronous Ports (PCS):

Minimum Order Quantity:

Price:

100-168USD Price is negotiable

Packaging Details:

Individual carton packing

Delivery Time:

5-8week day

Payment Terms:

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability:

50pcsday

Highlight:

OEM Hydraulic Grease Pump

Hydraulic Grease Pump Lubrication System

Synchronous automatic grease lubrication system

Product Description

The company specializes in the production of all kinds of high, medium, low pressure dry, thin oil lubrication equipment, hydraulic components, fluid connectors, support to map customization, large volume support logo customization, welcome overseas customers to come to buy, excellent price, good quality.

Product description

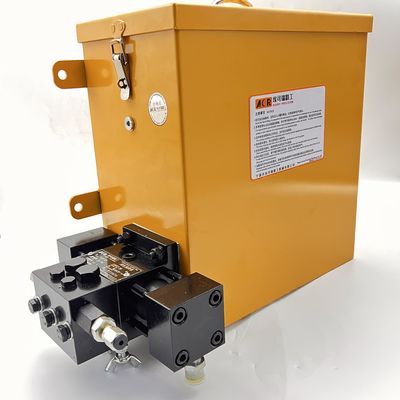

AH-XD6/0.3/0.20S hydraulic synchronous lubrication pump

Small steel oil drum for locations with limited space

Hydraulic power drive, reliable performance, suitable for continuous lubrication

The ordinary type is equipped with 3 fat outlets, of which two synchronous outlets and the drive hydraulic oil commutation synchronous alternate fat

The model with hand pump is equipped with a hand pump module for the circulation port for start-up, completion maintenance or continuous work guarantee

The booster model drives the oil pressure and the grease pressure to 1.7 times

In 8-port and 10-port multipoint models, any symmetrical fat outlet is synchronized with the drive hydraulic source, and the filter and distributor of the lubrication system can be omitted to reduce costs

ALQ-100 oil filter is optional

Suitable for hydraulic source pressure in 16MPa~25MPa equipment lubrication

It is suitable for concrete conveying pump of construction machinery and mine and underground construction machinery

A progressive distributor can be configured for each outlet

Model example

AH - XD6 S / 0.3/0.20

Hydraulic step lubrication pump - fat outlet nozzle diameter 6mm; Circulation port capacity 0.3ml/ cycle; Two simultaneous displacement 0.2ml/ cycle; Drive joint port forward; Stainless steel oil drum.

8AH-XDV6/O/O.2/UC

Hydraulic lubrication pump - multi-point type with 8 fat outlets; Fat outlet nozzle diameter 6mm; All mouth capacity 0.2ml/ cycle; Drive the connector up and paint the oil drum with carbon steel

Automatic Synchronous Hydraulic Grease Pump Lubrication System OEM 1

Automatic Synchronous Hydraulic Grease Pump Lubrication System OEM 2

Automatic Synchronous Hydraulic Grease Pump Lubrication System OEM 4

Technical parameter

Model: AH-XD(Ordinary type) AH-XD Manual AH-XD Supercharged AH-XD Manual + Supercharged AH-XDV Multi-point model

Nominal pressure (MPa) : 16~19

The best driving oil pressure (MPa) : 16~19

Maximum driving oil pressure (MPa) : 25

Boost ratio: /

Circulation port volume (ml/cy) : 0.2/0.3/0.4

Synchronous port displacement (ml/cy) : 0.15/0.2/0.3

Number of circulation (PCS) : 1

Number of synchronous ports (PCS) : 2

Manual pump pressure (MPa):/

Manual pump capacity (ml/cy) : /

Barrel volume (L) : 15

Standard drive port (mm) : M16×1.5 (inner cone 24°)

Applicable medium (lithium grease) : O#~000#

Note: When customizing the driver port, add the model to the driver port

У нашей компании все еще есть запасы масла. Встретимся на южном чанше

JPQ-M progressive distributor

Whole sheet structure, good sealing, high pressure, suitable for heavy load grease lubrication system.
It can be connected in series by the child and the mother, and it can be divided into two and three levels of oil.
Optional cycle indicator for remote control or control of lubrication system.

Model example

6 JPQ - M1/0.2/66 D:

The first series of JPQ-M series progressive distributor; 6 standard export oil; 0.2ml/ cycle per mouth;

The oil inlet is connected with a 6mm outer diameter pipe joint; The oil outlet is connected to the check valve connector of the 6mm outer diameter pipe D

Technical parameter

Model: JPQ-M1

Automatic Synchronous Hydraulic Grease Pump Lubrication System OEM 5

Capacity per well (ml/cy) : 0.2

Nominal pressure (Mpa) : 31.5

Starting pressure (Mpa) : ≤1.5

Number of feed ports (PCS) : 6~20

Inlet and outlet oil hole diameter (mm) : ¢6 ¢8

Model: JPQ-M2

Automatic Synchronous Hydraulic Grease Pump Lubrication System OEM 6

Displacement per hole (m/g) : 0.15; 0.20; 0.30; 0.38; 0.48; 0.60; 0.72; 0.86

Nominal pressure (Mpa) : 31.5

Starting pressure (Mpa) : ≤1.5

Number of feed ports (PCS) : 6~20

Inlet and outlet oil hole diameter (mm) : ¢6 ¢8

JPQ-M optional accessories

Proximity switch type cycle indicator

Proximity switch structure

The distributor works in one cycle, and the cycle indicator operates once, which can be used to monitor the working state of the lubrication system (fault alarm or control the lubrication system to work and stop).

Signals can be provided to PLC

Our company is committed to one-stop parts service to ensure perfect fit and excellent performance. This makes it easier for you to find the right part for your pump truck, saving you time and effort.

Наша компания работает над одноэтажным сервисом аксессуаров, обеспечивающим идеальное сотрудничество и превосходную производительность. Это облегчает поиск деталей, подходящих для вашего насоса, экономит ваше время и энергию.

Product description
JPQC plug-in progressive distributor.
High pressure of working valve block; Easy to replace
Each feed port of JPQC-1 series is equipped with safety adjustment and overpressure overflow indication, which can ensure the normal operation of the distributor when the lubrication point is blocked, and show the blockage point
After the overflow grease of all safety valves is concentrated, the pump oil drum can be connected to the T port
The principle and explanation of safety valve and overpressure overflow indication are the same as AGF .

Model example

6JPQC-1/86D6 :

The first series JPQC series plug-in progressive distributor; 6 oil outlets; The oil inlet is connected with an 8mm outer diameter pipe joint;

The oil outlet is connected to the check valve connector of the 6mm outer diameter pipe, and the oil return port is connected to the 6mm outer diameter pipe connector

Technical parameter

Model: JPQC-1 JPQC-2

Capacity per well (ml/cy):0.2

Nominal pressure (MPa) : 31.5

Starting pressure (MPa) : ≤1.5

Relief valve overflow pressure (MPa) : 10

Oil inlet nozzle (mm) : ¢6¢8

Oil return port nozzle (mm) : ¢6¢8

Oil outlet nozzle (mm) : ¢6¢8

Automatic Synchronous Hydraulic Grease Pump Lubrication System OEM 7

Эта компания специализируется на производстве высококачественных, средне-средных, разбавленных масличных приборов, гидравлических компонентов, жидких соединений, поддерживаемых для того, чтобы быть на графике, в больших объектах поддерживаемых логотипом, и приветствует большое количество зарубежных клиентов, которые пришли на отбор, повышение цен и качественное качество.
